All about your Dyson V10 Optic™ vacuum

Welcome to your dedicated Owner’s space.
Here you’ll find helpful tips, maintenance advice, how-to videos, and your user manual.

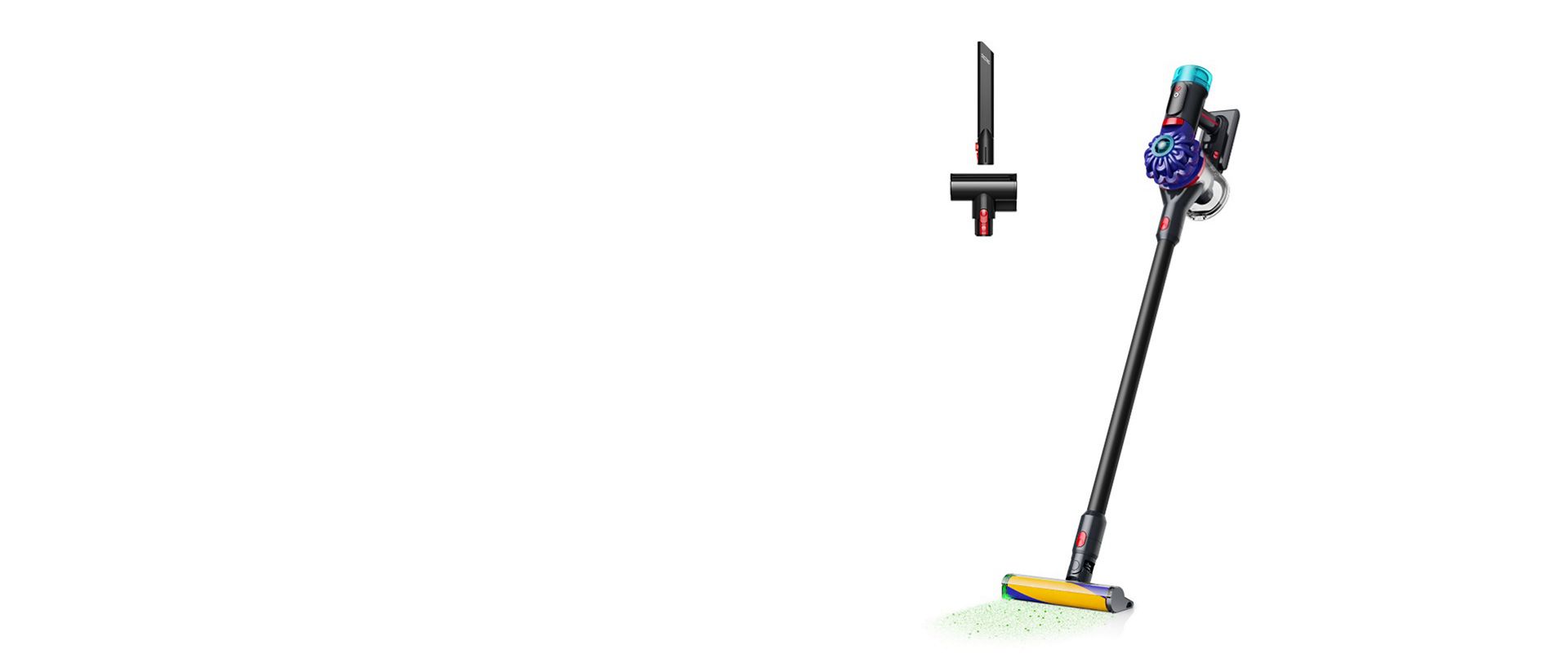

Dyson V10 Optic vacuum cleaner.

Have you registered your machine?

Download the MyDyson™ app and register for fast access to tailored guides, 24/7 support, and filter replacement reminders.

Apple store logo Google Play logo

Getting set up

Get ready to clean, the right way, with our in-depth explainer video on how to set up your Dyson V10 Optic™ vacuum.

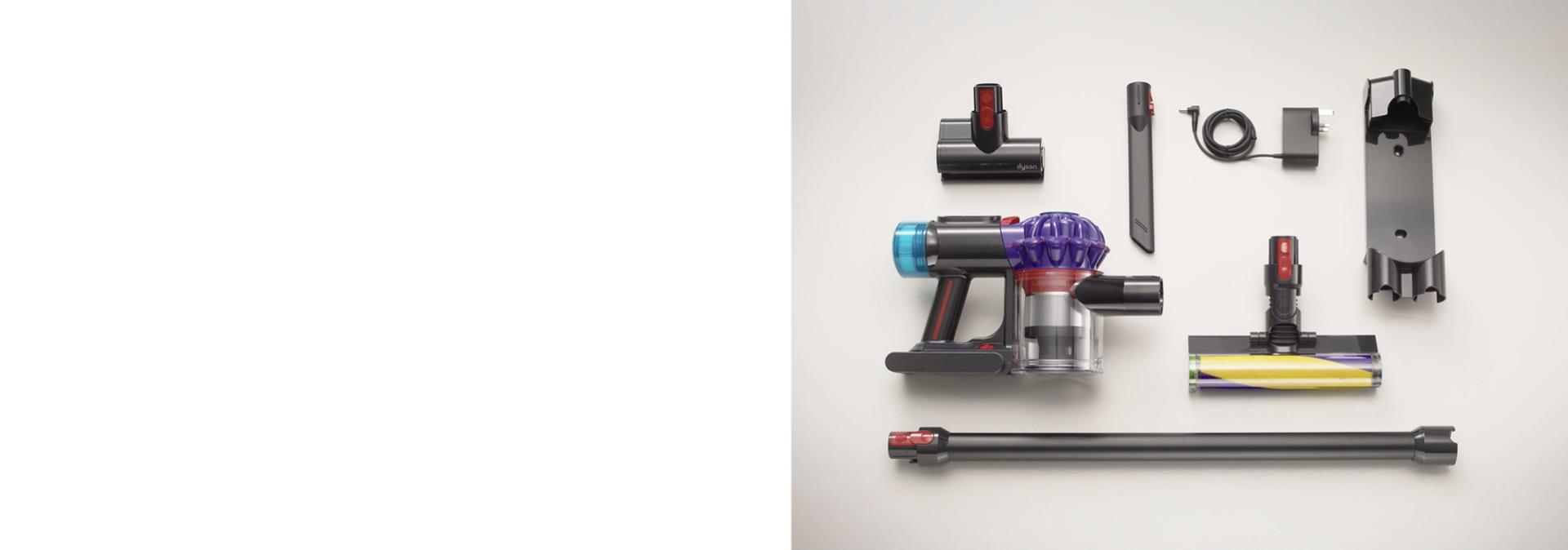

Dyson V10 vacuum and included tools and accessories.

Installing your Wall Dok™ and charging your machine

Regularly charging your machine is an important part of cordless vacuum maintenance. Watch the videos below to learn how to install your Wall Dok™ and use your charger.

  • The charging cable is plugged into the battery.
    Charging the battery

    It's important to fully charge the battery before first use to help future battery monitoring and run time.

  • The Wall Dok is screwed into place on a wall.
    Setting up your Wall Dok™

    Your Wall Dok™ can be used to store and charge your machine. Watch the video to learn how to install yours.

Get the most out of your machine

Choose the right settings for the task and always be ready to go with 100% charge.

  • The Dyson V10 vacuum is placed into its Wall Dok.
    Get the best out of your battery

    We recommend placing your vacuum cleaner back on charge after each use so it's ready to go. You can do this directly into the machine or through the Wall Dok™, and the charger will stop charging when it reaches 100%.

  • The mode select button is pressed on the Dyson V10 vacuum.
    How to choose the right power mode

    Your Dyson V10 Optic™ vacuum is engineered with three different power modes. Switch between Eco and Auto mode dependent on your cleaning needs, and activate MAX mode when you need a short burst of maximum suction. Fade-free power for every task.

Getting to know your cleaner heads and tools

Discover your cleaner head and tools. Designed for whole-home cleaning. From precise cleaning in tricky areas to deep cleaning on mattresses and upholstery.

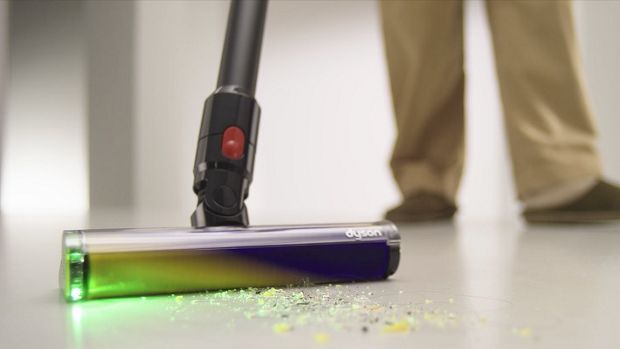

  • Dyson Fluffy Optic cleaner head illuminates and cleans dust from a hard floor.
    Fluffy Optic™ cleaner head

    Fluffy Optic™ cleaner head reveals twice the amount of invisible dust and dirt you can’t normally see on hard floors. So you don’t miss a thing.1

  • The Mini motorised tool used to clean fur from a pet bed.
    Mini motorised tool

    A mini motorised brush bar, concentrated in a smaller head to remove stubborn dirt from mattresses, upholstery and stairs.

  • The Crevice tool is used to clean between cabinets.
    Crevice tool

    The Crevice tool reaches up to seven inches into narrow spaces as small as half an inch.

Maintaining your Dyson V10 Optic™ vacuum

Regular maintenance can help keep your machine working at its best.

Dyson V10 vacuum is emptied into a bin.
  • The Dyson V10 vacuum is checked for blockages.
    Maintaining your cleaner head

    Keep your cleaner head clear of debris for optimal performance. Regularly maintain your brush bar by using clean, cold water.

  • The bin of the Dyson V10 vacuum is cleaned.
    Emptying and cleaning the bin

    The ‘point and shoot’ mechanism hygienically ejects dust and debris deep into your bin, in one action – so there’s no need to touch the dirt.

  • The Pre-motor filter is cleaned under running water.
    Washing your filters

    Regularly clean your Pre-motor filter and Post-motor filter with clean, cold water for maximum performance.

Frequently asked questions

The Fluffy Optic™ cleaner head has a washable soft roller brush bar, and regular washing helps maintain optimal performance. To help preserve the cleaner head, clean the cleaner head housing with a soft, dry, lint-free cloth.

Reduced suction may occur if the 15 cyclones or Root Cyclone™ separation system are obstructed. Empty the bin using the no‑touch point‑and‑shoot mechanism, then check the airway and filter. This ensures continued no‑loss‑of‑suction performance.

Empty the bin whenever debris reaches the MAX line. The vacuum uses hygienic no‑touch bin emptying that ejects dust in a single action, helping maintain airflow and cleaning performance.

You can cycle between Eco, Medium, and MAX modes using the Mode button on the top of the machine. The Mode button sits below the red power button, closer to the post‑motor filter.

Run time varies depending on power mode and floor type. Eco mode delivers the longest run time, while Medium and MAX provide more suction for demanding tasks. The vacuum can run up to 60 minutes of fade‑free suction4 under recommended conditions.

The Dyson V10 Optic™ vacuum uses fully‑sealed, five‑stage HEPA filtration that captures 99.99% of microscopic particles as small as 0.1 microns.3 If filtration reduces performance, remove the filter and tap it gently to release dust before reinstalling.

Pulsing blue: charging
No light: fully charged
Flashing blue: battery fault
Solid orange: motor fault
Flashing orange: incompatible tool
Flashing white: cyclone not fitted correctly

Remove the cyclone and the bin using the release catches. Wipe the bin with a damp, lint‑free cloth only. Do not use detergents, air fresheners, or dishwashers. Ensure the bin is completely dry before refitting.

Intermittent stopping may indicate an airflow obstruction. Check the wand, cleaner head and bin inlet for blockages. The digitally controlled motor (spinning up to 110,000rpm) protects itself by regulating power when airflow is restricted.

A pulsing motor indicates a blockage. Disconnect from the charger, let the machine cool, and check for obstructions in:

The bin and cyclone
The wand (check both ends)
The cleaner head and brush bar
Remove any debris before restarting.

For best performance, only use MAX mode when necessary. The machine can remain in the dock or on charge as it stops charging automatically. The vacuum won’t operate or charge below 5°C (41°F) to protect the motor and battery.

1Compared to the original Dyson Laser Slim Fluffy™ cleaner head. Effectiveness influenced by ambient light conditions, debris type and surface.
2Suction tested to IEC 62885-4:2023, Sec. 5.11 and 5.12, in Boost mode at the inlet in SGS Laboratory USA in 2025.
3Filtration tested against ASTM F3150 in Boost mode by independent third party, SGS IBR Laboratories in US, in a laboratory setting. Filtration efficiency is calculated by comparing the number of standardised dust particles entering the vacuum cleaner against those released. The capture rate may vary in use.
4Applies in Eco mode in handheld configuration. Actual run time will vary based on power mode, floor type and/or attachments used.
550% more runtime in Eco mode compared to the original V8 allows 50% more dirt collected. Actual performance may vary based on debris and usage.
630% more suction compared to the original V8 cordless vacuum cleaner.
