Support for your Dyson Pure Cool Cryptomic purifying fan

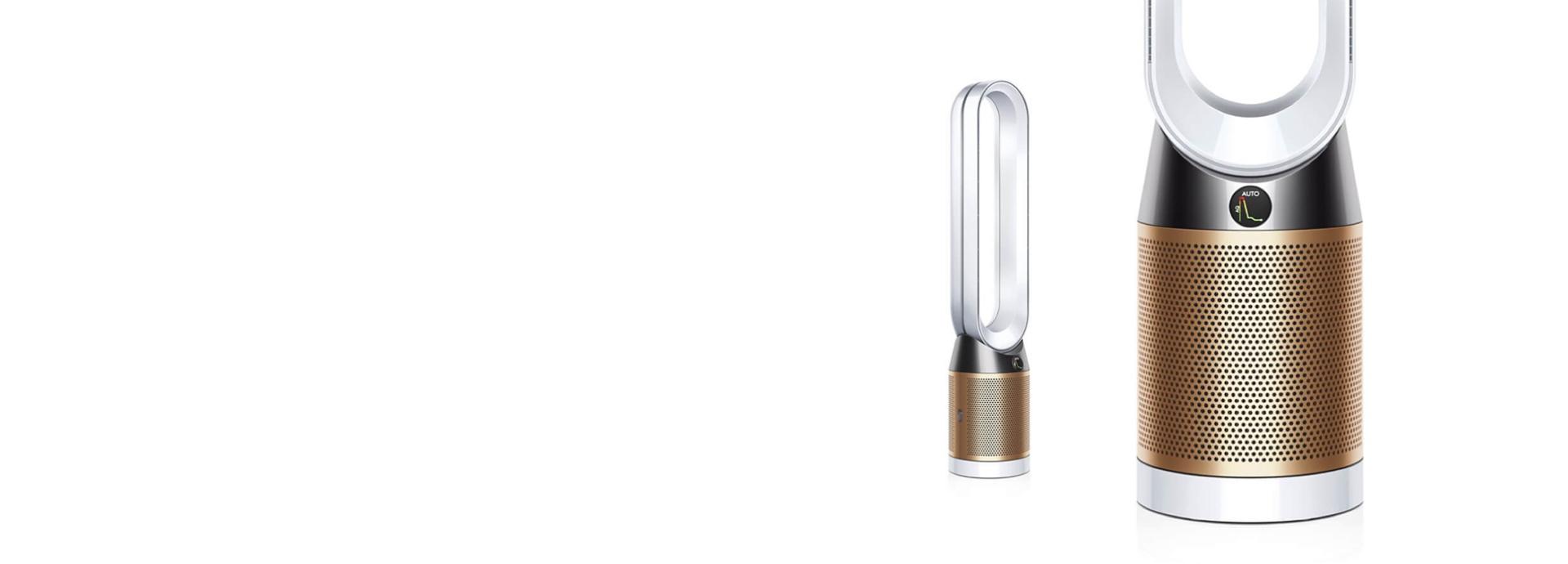

Dyson Pure Cool Cryptomic purifying fan

Here you can find helpful tips, frequently asked questions, your user manual and more.

Activate your guarantee

You can get support that's tailored to you, owner exclusives and more when you register your machine.

Getting started

Watch how to quickly get up and running with our step-by-step guide.

Connecting your machine

Follow these three simple steps to connect your machine to the Dyson Link app.

  • Mobile device

    Step 1

    Download the Dyson Link app¹, open it and select 'Add machine' from the menu. Then select your machine.

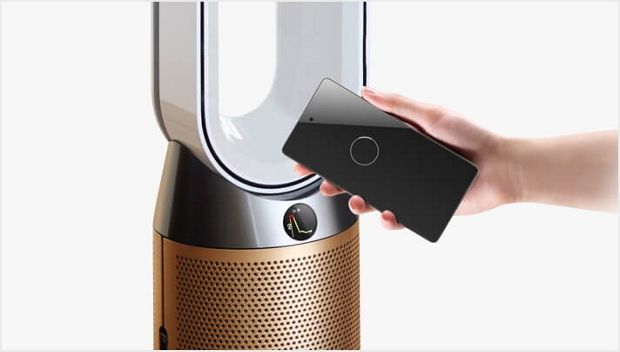

  • Mobile device being held close to the Dyson Pure Cool Cryptomic air purifier

    Step 2

    Hold your mobile device next to your machine's display. This will allow your machine to detect your device.

  • Standby button being pressed on the Dyson Pure Cool Cryptomic air purifier

    Step 3

    Press the Standby button on your machine to activate the pairing process. Then follow the on-screen instructions to complete connection set-up.

User manual

Download your Dyson Pure Cool Cryptomic purifying fan user manual.

User manual

6.3MB

Using your machine

Understanding your LCD screen's icons


The icons on the built-in LCD screen show you which pollutants are present, reporting them in real time. They also tell you about filter life.

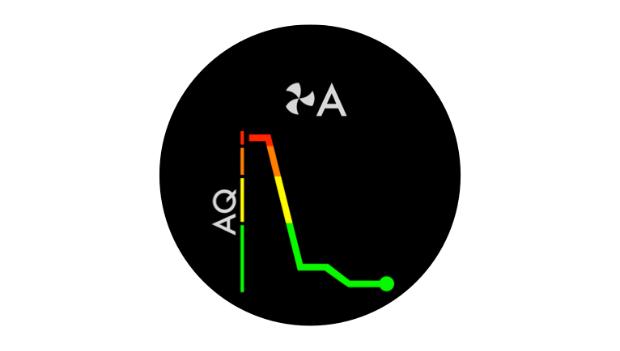

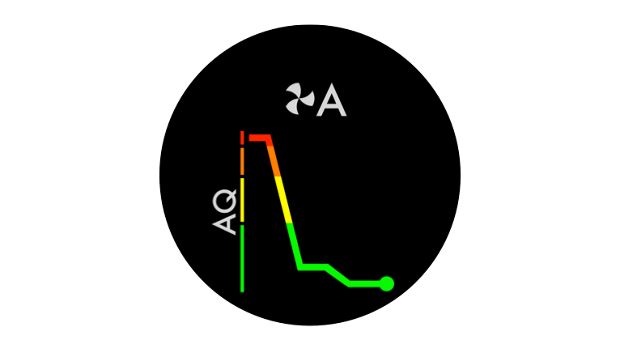

  • The Dyson Pure Cool Cryptomic purifying fan's LCD screen icons

    Indoor Air Quality Index (AQI)

    Shows your air quality over the last 12 seconds, or over the last 24 hours.

  • The Dyson Pure Cool Cryptomic purifying fan's LCD screen icons

    Particulate matter PM2.5

    Shows microscopic particles smaller than 2.5 microns, including smoke, bacteria and allergens.

  • The Dyson Pure Cool Cryptomic purifying fan's LCD screen icons

    Particulate matter PM10

    Shows particles smaller than 10 microns, including pollen, dust and pet dander.

  • The Dyson Pure Cool Cryptomic purifying fan's LCD screen icons

    Volatile Organic Compounds (VOCs)

    Shows gases released from a wide range of sources, such as aerosol sprays and air fresheners. They include formaldehyde and benzene, household fumes and odours.

  • The Dyson Pure Cool Cryptomic purifying fan's LCD screen icons

    Nitrogen Dioxide (NO2)

    Shows oxidising gases such as NO2, released by combustion. Includes cigarette smoke, car emissions, candles and gas stoves.

  • The Dyson Pure Cool Cryptomic purifying fan's LCD screen icons

    Filter life

    Shows how much filter life remains on the combination filter. So you know when to replace it.

Understanding pollutant levels

When a pollutant causes the air quality to drop, the relevant icon will appear on the LCD screen. The coloured bar on the left of the screen will indicate how much of the pollutant is present, and will continually update as your machine purifies the air.

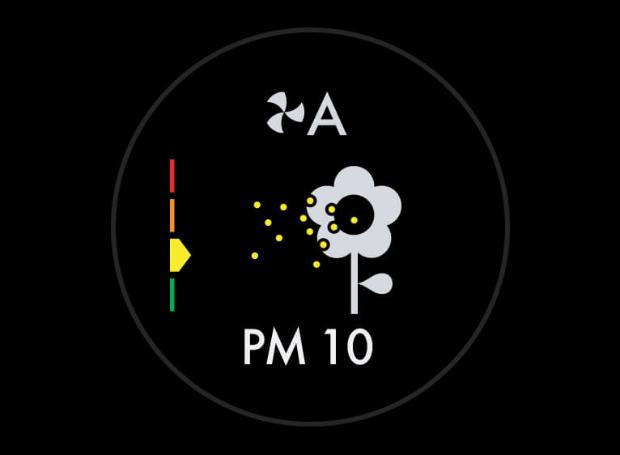

  • The LCD screen's icons showing different levels of pollutants

    Fair

    When the yellow section of the coloured bar is highlighted, your machine is detecting a moderate level of the type of pollutant.

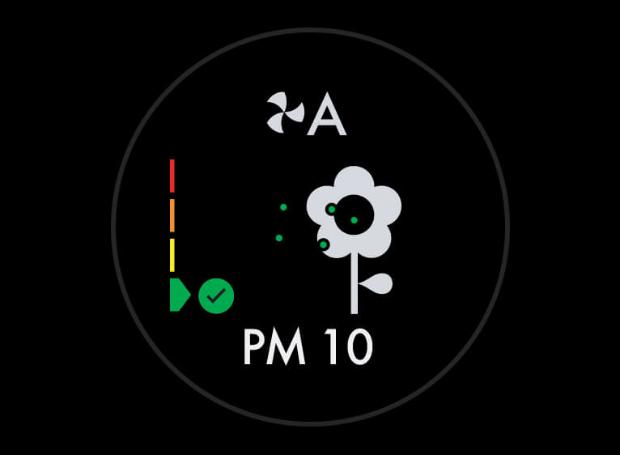

  • The LCD screen's icons showing different levels of pollutants

    Good

    When the green section of the coloured bar is highlighted, your machine is detecting a very low level of the type of pollutant.

  • The LCD screen's icons showing different levels of pollutants

    Poor

    When the orange section of the coloured bar is highlighted, your machine is detecting a high level of the type of pollutant.

  • The LCD screen's icons showing different levels of pollutants

    Very poor

    When the red section of the coloured bar is highlighted, your machine is detecting a very high level of the type of pollutant.

  • Video on how to set Auto mode

    Auto mode

    In Auto mode, your machine monitors and responds to air pollution. When it detects pollutants, it automatically projects purified air.

  • Video on how to customise the oscillation angle

    Oscillation angle

    You can set the oscillation angle of your purifying fan, from 45° to 350°.

  • The Dyson Pure Cool Cryptomic purifying fan in Night mode

    Night mode

    For the quietest settings and a dimmed display, set your machine to Night mode using your remote control.

  • Person setting the Sleep timer using the remote control

    Sleep timer

    Using your remote control, choose when you'd like your machine to turn off. Select a time between 30 minutes and 8 hours.

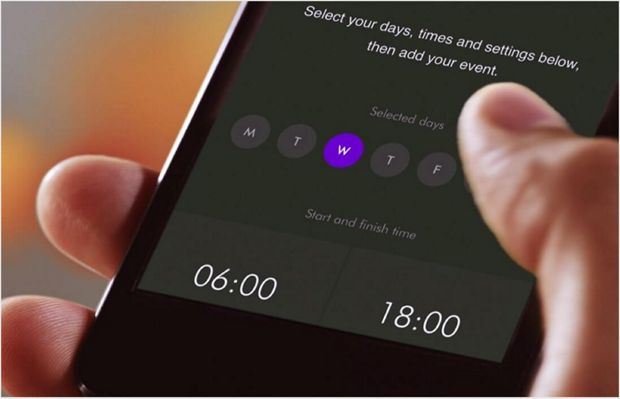

  • Person scheduling their machine using the Dyson Link app

    7-day scheduling

    Choose when you want your machine to be on and off, up to seven days in advance, with the Dyson Link app.

  • Video on setting the airflow speed

    Airflow speed

    Choose from 10 different fan speed settings, and switch between front projection and Diffused modes.

Maintaining your machine

You can find out how to monitor and replace the combination filter in our video guide. Your Dyson Cryptomic™ filter is permanent, so you don’t need to change it.

Frequently asked questions

The combination filter needs to be changed after 12 months, based on 12 hours’ use a day. The Dyson Cryptomic™ filter is permanent, so you don’t need to change it.

If you're concerned by the brightness of your purifying fan heater's LCD display, consider enabling Night-time mode using your remote control or the Dyson Link app. During operation, a small moon icon indicates that your purifier is on, but the main display turns off after 10 seconds to help avoid sleep disturbance.

If auto mode is enabled, AUTO will be illuminated on your purifying fan's LCD display. When your machine is purifying the air, AUTO will be in white. When the air in the room is purified, it will turn green and your purifying fan will remain idle until pollutant levels rise.

Your purifying fan's auto mode is designed to manage the air quality in your home without you having to operate the machine – so it's only on when it needs to be. If you or someone in your home suffer from allergies or respiratory illnesses, we particularly recommend using your machine's auto mode.

Your purifying fan is engineered to purify single rooms, so you should use it where you spend the majority of your time at home. When placing the machine, make sure there is at least a few feet of clearance on all sides so that the air can circulate effectively.

Your purifying fan heater works most efficiently in a sealed environment – opening the windows can allow more pollutants to enter the air in your home, which means your machine will take longer to work.

Increasing airflow will create a cooling effect using purified air, so you may find it beneficial to change your purifier fan's speed settings as the temperature changes. For personal cooling in summer, use settings 4-10. In colder periods, enable diffused mode. It projects air through the back of the machine, to avoid unwanted cooling.
